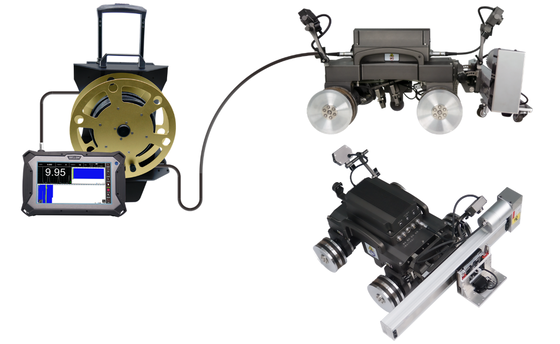

TG-M90 Magnetic Crawler C-scan Corrosion Thickness Measurement with Remote Control System and No Couplant Needed

TG-M90 Magnetic Crawler C-scan Corrosion Thickness Measurement with Remote Control System and No Couplant Needed
TG-M90 Magnetic Crawler C-scan Corrosion Thickness Measurement with Remote Control System and No Couplant Needed

大画像 :  TG-M90 Magnetic Crawler C-scan Corrosion Thickness Measurement with Remote Control System and No Couplant Needed

商品の詳細:
起源の場所: 中国
ブランド名: HUATEC
証明: ISO,CE
モデル番号: TG-M90
お支払配送条件:
最小注文数量: 1セット
パッケージの詳細: 良質のカートン
受渡し時間: 15〜25営業日
支払条件: L/C、T/T、ウェスタンユニオン
供給の能力: 月5個
連絡先

TG-M90 Magnetic Crawler C-scan Corrosion Thickness Measurement with Remote Control System and No Couplant Needed

説明
コントローラー次元: L220×W145×H60mm クローラ本体寸法: L350×W330×H230mm
クローラー本体重量: 17KG 制御ケーブルの距離: 30m (カスタマイズ可能≤50m)
最小曲率半径: R: ≥0.75m (残留高さなし) 前後速度: 5～200mm/s

TG-M90 Magnetic Crawler C-scan Corrosion Thickness Measurement
This advanced corrosion thickness measurement system eliminates the need for scaffolding, surface polishing of anti-corrosion layers, and couplants. It enables rapid remote-controlled detection of high-altitude wall thickness corrosion through innovative electromagnetic ultrasonic technology.
System Configuration
Item Name Unit Quantity Remark
1 Host (PC and Software) set 1 10.6 inch screen
2 M90D Magnetic Crawler (Video and Thickness measurement module included) set 1
3 Controller piece 1
4 C-scan Frame/Transverse Grating Arm piece 1
5 Defect Marking Mechanism piece 1 Optional
6 Cable Unit (Power supply, Cable Winding Rack, Control cable) set 1 30m, can be customized ≤50m
7 Safety Rope Drop Preventer meter 30 Can be customized ≤50m
8 Other Accessories (magnetic dismantling pads, etc.) set 1
Key Features
No scaffolding required • No surface polishing needed • No couplant necessary • Remote-controlled high-altitude corrosion detection
  • Rare-earth high-strength permanent magnet wheels ensure safety even during power failure
  • Multi-attitude operation on ferromagnetic surfaces (horizontal, vertical, inverted)
  • Electromagnetic ultrasonic thickness measurement probes for rapid corrosion screening
  • Comprehensive scanning of suspected corrosion areas with quantitative analysis
  • Standard A, B, and C scan displays for clear thickness visualization
  • Integrated video camera for real-time surface inspection monitoring
  • Remote control with preset scanning tracks for automated operation
Magnetic Crawler & Host Specifications
Functional Features
  • Integrated front-view and rear-view dual cameras for real-time monitoring
  • Strong magnetic suction with 16kg vertical upward load capacity
  • Multiple movement postures: vertical, horizontal, inclined, and inverted
  • High motion precision with millimeter-level programmed step detection
  • Compact design with small turning radius for easy maneuverability
  • Motion-oriented guidance with macro video surveillance
  • Distance positioning (error ≤30mm) with optional defect marking
  • Professional scanning clamping mechanism for stable travel and probe coupling
  • High electrical safety with special cables and leakage protection
  • Sealed protective box for EAMT and circuit modules
Technical Parameters
  • Host: CPU ≥ i5/4GHz quad-core, 10.6" high-brightness HD display
  • Control cable: 30m (customizable up to 50m)
  • Motion paths: Linear, zigzag, and bow-type scanning patterns
  • Longitudinal movement: 5-200mm/s stepping speed, ≤4mm barrier clearance
  • C-scan bracket: 300mm total travel (customizable), 0-80mm/s speed
  • Surface curvature: R ≥0.75m (no residual height), R ≥1.5m (with weld seams)
  • Crawler body: 350×330×230mm, 17kg weight, passes through Φ450mm holes
  • Controller: 220×145×60mm, 3.5" touch display, 0.4kg weight
  • Video: Dual 3MP cameras (2304×1296 resolution)
  • Power: AC100-240V, 50/60Hz, ≤200VA consumption
  • Operating conditions: -10℃ to +50℃, ≤85% humidity
EAMT Thickness Measurement Unit
Functional Features
  • No surface preparation required - penetrates up to 4mm of coatings
  • Measurement non-perpendicularity up to ±25° for flexible positioning
  • Multiple display formats: digital values, A-scan, time-based and distance-based B-scan
  • Intelligent algorithms with automatic, single gate, and double gate measurement modes
  • Built-in material shear wave speed database with customizable values
Technical Parameters
  • Thickness measurement: Accuracy 0.04mm, Range 2-120mm (Steel)
  • Work clearance/lift-off: ≤4mm
  • Measurement non-perpendicularity: ±25°
  • Sound speed range: 1000-9999 m/s, 1 m/s adjustment increment
  • Gate functions: Automatic, manual single gate, manual double gate
  • Electromagnetic ultrasound probe: ≤15N magnetic suction, Φ30×44mm, ≤80g weight
  • Working temperature: -10℃ to +50℃
Measurement Analysis Software
  • Simultaneous display of thickness, A, B, and C scan results
  • Direct test record generation with thickness value lists for analysis
  • Compatible with Windows 7-11 (32/64 bit) operating systems
Standard Package Contents
  • Test host (PC and Software) - 1 Set
  • M90D magnetic crawler with video and thickness modules - 1 Set
  • Controller - 1 Piece
  • C-scan frame/transverse grating arm - 1 Piece
  • Defect marking mechanism - 1 Piece (optional)
  • Cable unit with power supply and control cable - 1 Set
  • Standard test block (carbon steel Φ20×10mm) - 1 Piece
  • Other accessories (magnetic dismantling pads, etc.) - 1 Set
  • Safety rope drop preventer - 1 Piece
  • Operating manual - 1 Book
  • Factory test report - 1 Copy
  • Anti-vibration transport box - 1 Piece
Application Scenarios
TG-M90 Magnetic Crawler in industrial corrosion inspection application
